About the Calibration Dashboard
The Isensix Calibration Dashboard helps monitor, validate, summarize, and improve calibration work across multiple Isensix servers.
With the Leighton's Isensix Tools Chrome extension installed, dashboard data updates when you visit any of these pages on any Isensix server:
- The Live View.
- The calibration page, which shows immediately after calibrating a sensor.
- The calibration summary page (sometimes called Amies Isensix Calibration Summary), or the debug query on ARMS servers.
If you are noticing any data missing from the dashboard, please view one of the pages above, then click refresh on the dashboard.
By Leighton Solomon
Helpful Links
- CMS Isensix Customer Management System. All servers and their information
- DMS Isensix Document Management System
- Leighton's Tools Instructions on installing and using the scripts to make your life easier
- Zeemaps of All Jobs Interactive map showing all Isensix jobs geographically. Work in progress...
- Ping Tool Tool for testing access point connectivity
- Common Drive All internal Isensix shared documents
- Customer Calibration Documents All customer-specific calibration documents. Put your reports here!
- Field Technicians Folder Files, Resources and information for field technicians
Sensor Type Specifications
| Sensor Type | Application | Settle Time | Max. Offset | Nominal Range | Calibration or Validation | Buffering Solution |
|---|---|---|---|---|---|---|
| SC | Ultra-Low Freezer | 20-30 min | +/- 3.0ºC | -90ºC to -45ºC | Calibrate | 100% methanol/propanol |
| RE | Freezer | 15-20 min | +/- 1.5ºC | -35ºC to 0ºC | Calibrate | 100% alcohol/propanol (frz) |
| RE | Refrigerator | 10-15 min | +/- 1.5ºC | 2ºC to 8ºC | Calibrate | 70% Glycerin/30% water (ref) |
| RM-S | Room | 5-10 min | +/- 1.5ºC | +15ºC to +50ºC | Calibrate | Air |
| RM-L | Incubator | 10-15 min | +/- 1.5ºC | +15ºC to +50ºC | Calibrate | Air or fluid temperature |
| RM-G | Gel Inc | 10-15 min | +/- 2.0ºC | +15ºC to +50ºC | Calibrate | Gel Cartridges |
| RM-H | Heat Block | 10-15 min | +/- 2.0ºC | +20ºC to +50ºC | Calibrate | Heat Blocks < 0.8in deep |
| TC | Thermocycler/Water Baths | 10-15 min | +/- 2.0ºC | +50ºC to +105ºC | Calibrate | Water Bath Solution |
| HU-S | Room Humidity | 10-15 min | +/- 5.0% | 10% to 95% | Calibrate | Air |
| HU-L | Inc. Humidity | 10-15 min | +/- 5.0% | 10% to 95% | Calibrate | Air |
| TMC | LN2 | 20-30 min | +/- 4.0ºC | -200ºC to -90ºC | Calibrate | Liquid Nitrogen or Vapor Phase |
| CO2 | Carbon Dioxide | 20-30 min | +/- 2.0% | 0% to 20% | Calibrate | Air |
| O2 | Oxygen | 10-15 min | +/- 2.0% | 0% to 25% | Validate | Air |
| BTTP (RM-L) | BacT Temp | 10-15 min | +/- 1.5ºC | +15ºC to +50ºC | Calibrate | Blood Culture Incubation Chamber |
| DA | Door Access | N/A | N/A | Open / Closed | Validate | |
| MPM | Platelet Inc Motion | N/A | N/A | Horizontal Motions/Min | Validate | |
| DP | Differential Pressure | 10 sec | +/- 0.05% | 0 to 0.020 in. of H2O | Calibrate | Air |
| AF | Air Flow | N/A | N/A | 30 to 200 fps | Validate | Air |
| BIN | Binary (Dry Contacts) | N/A | N/A | Application Specific | Validate | Dry Contacts |
| 4-20mA | 4-20mA output | N/A | N/A | Application Specific | Validate |
Reference Images
Click to Expand

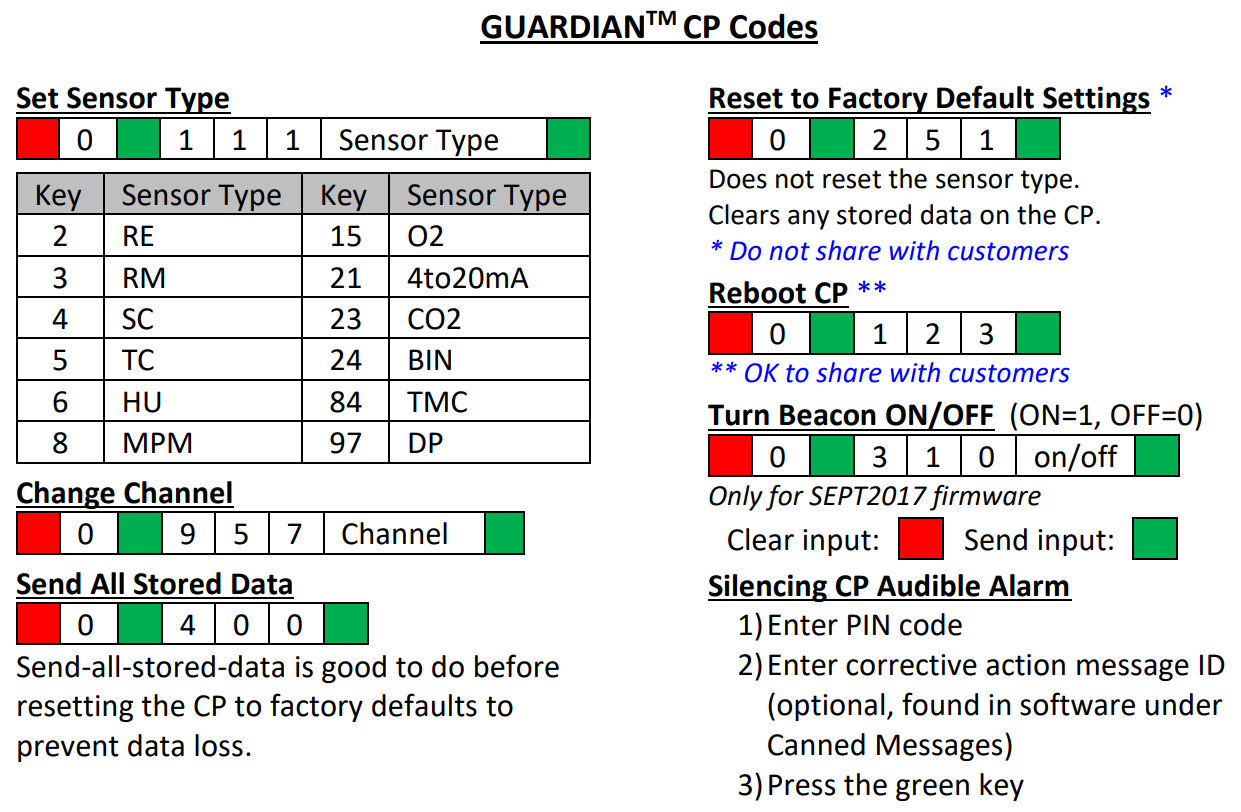

Guardian CP Codes

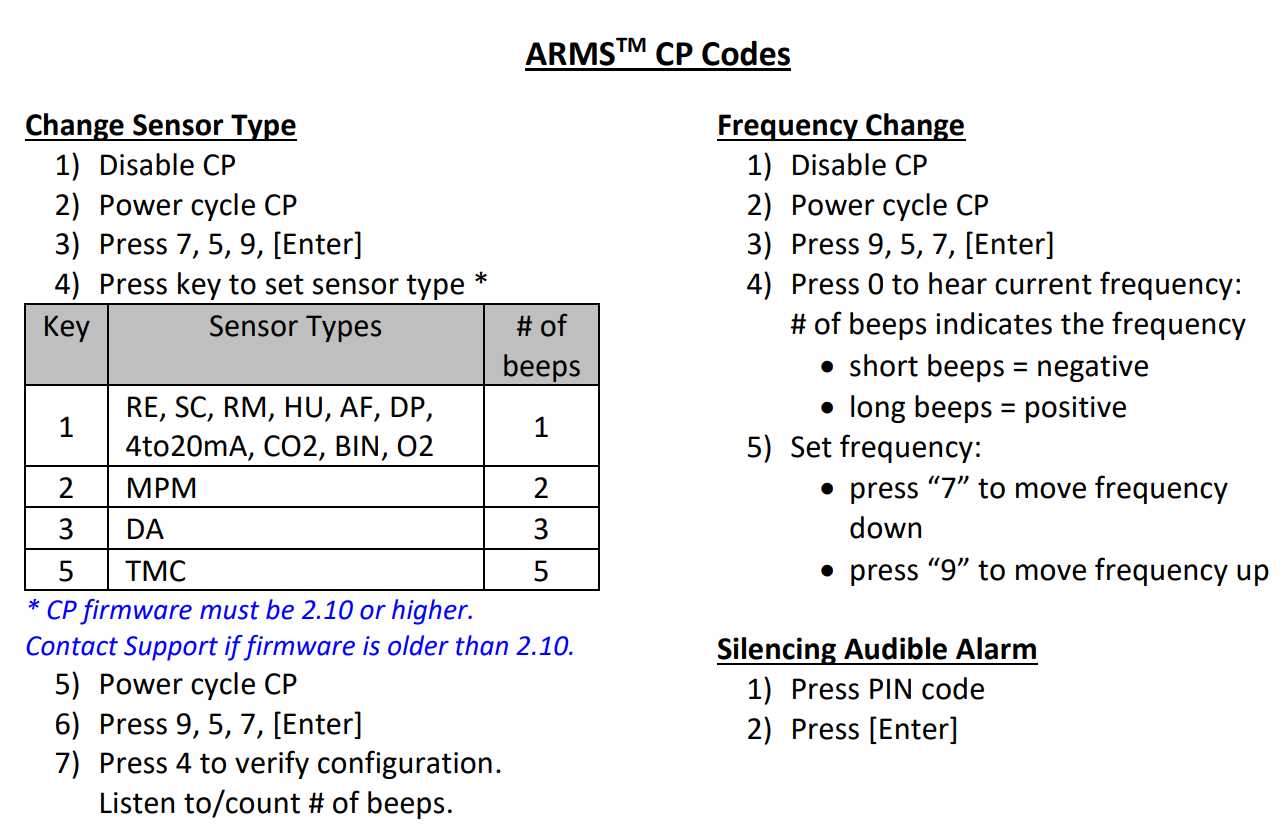

ARMS CP Codes

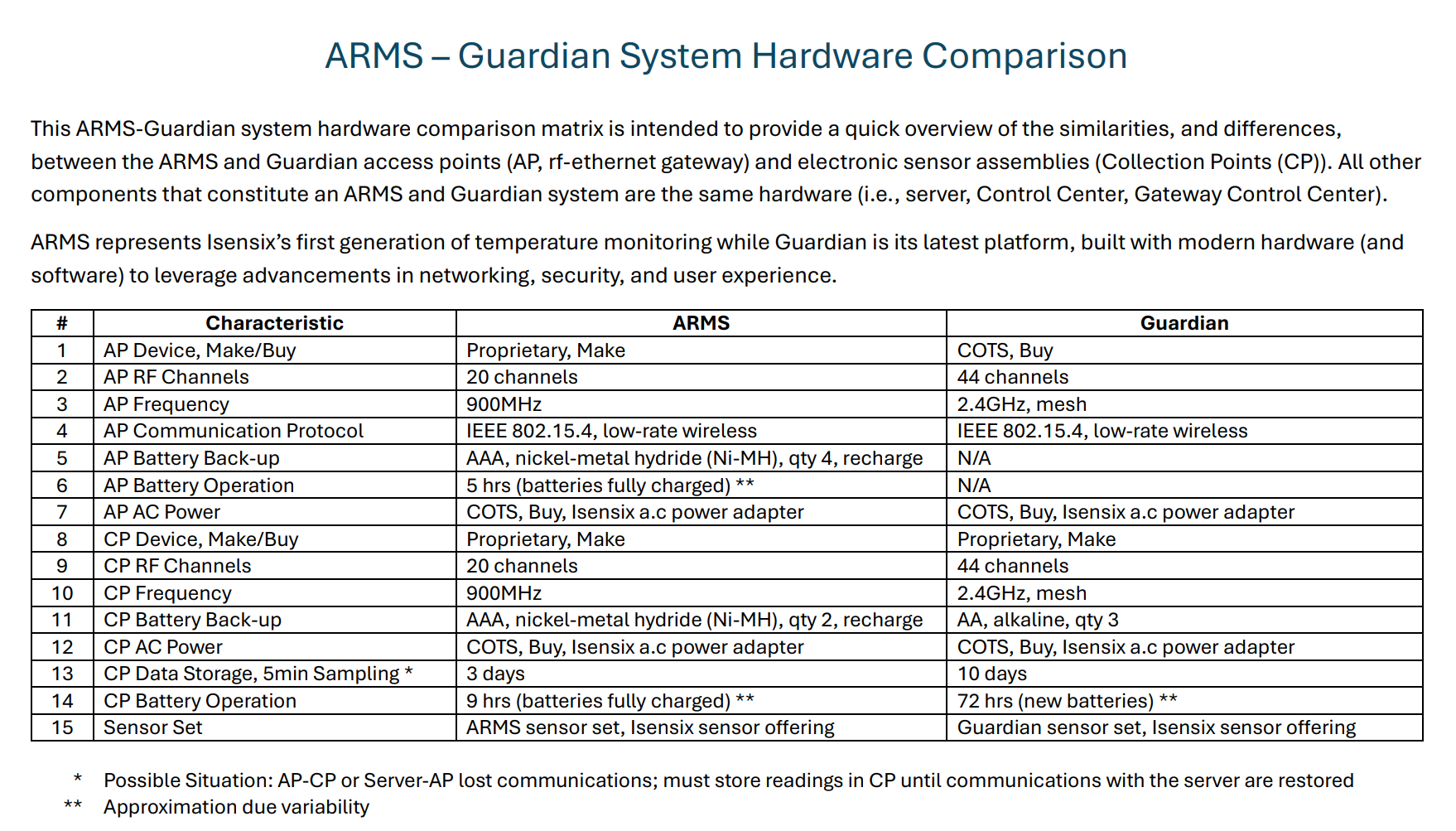

ARMS vs Guardian

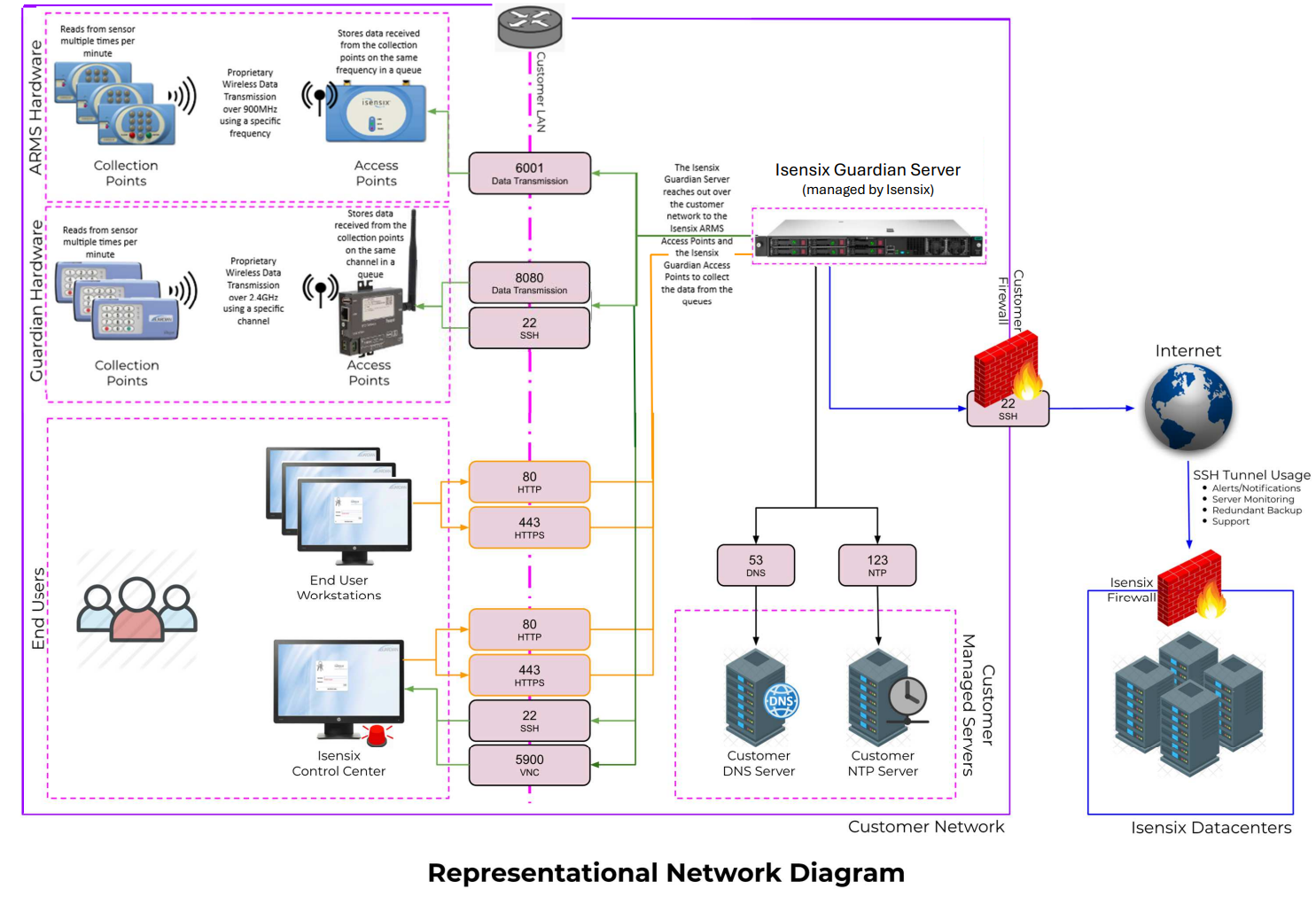

Network Diagram
